Everyone deserves a hot tub from The Hot Tub Store.

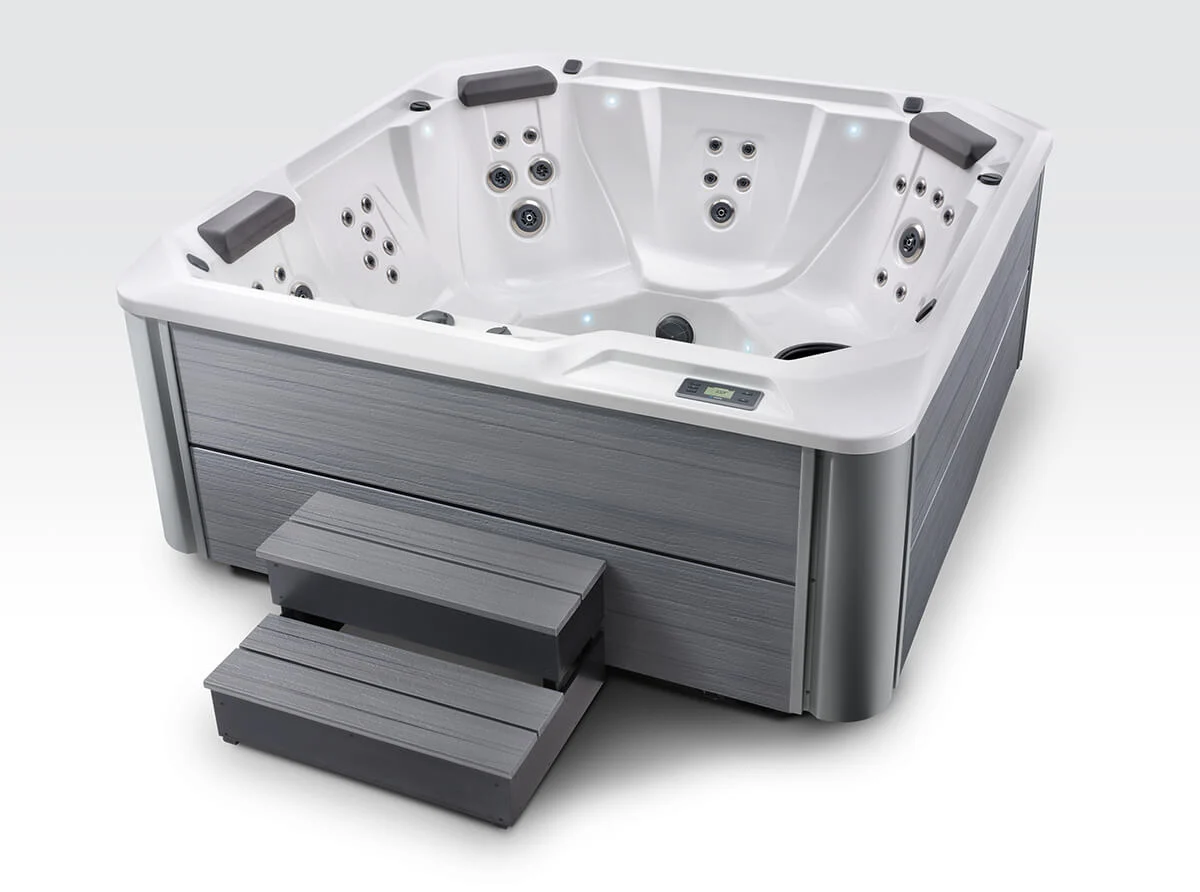

Relay®

6 Seats

|

40 Jets

You’ll find your perfect seat in the versatile Relay. There’s plenty of room for a group, or stretch out for a solo soak and enjoy soothing massage from neck to toe.

Choose Your Relay® Colors

Which Aesthetic Fits Your Yard?

Cabinet:
Shell:
Alpine White Pearl Pebble Tuscan Sun
Alpine White Pearl Pebble Tuscan Sun
Alpine White Pearl Pebble Tuscan Sun

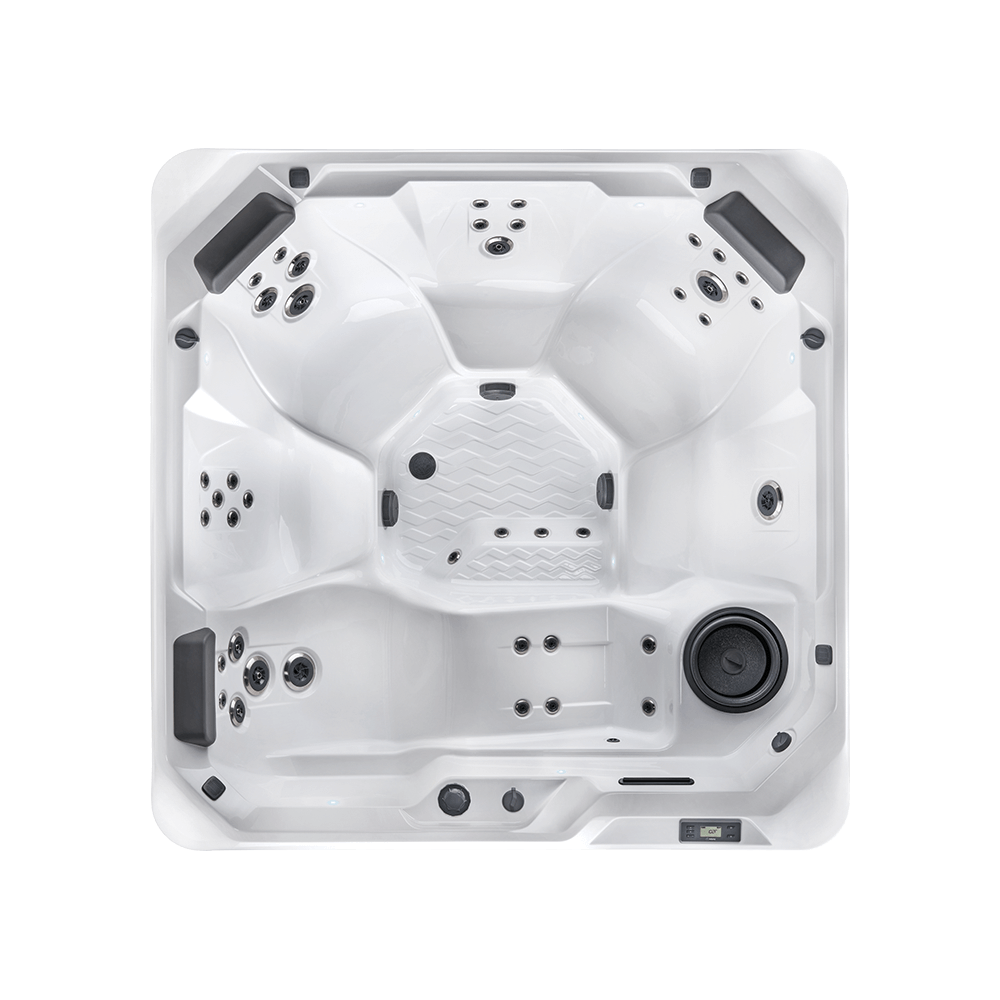

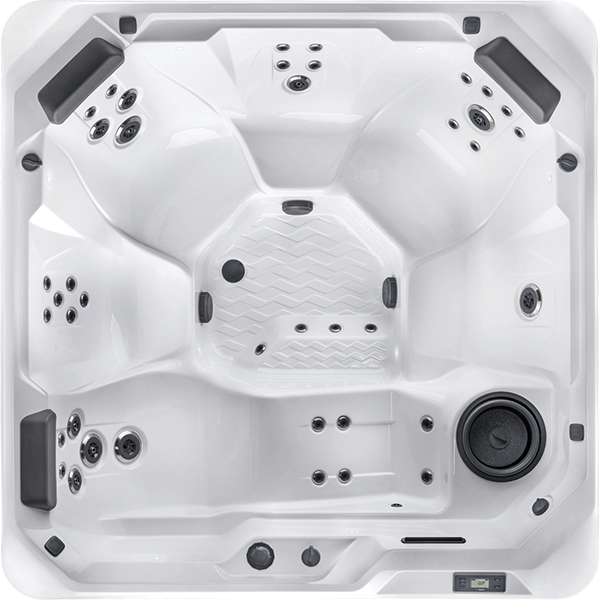

Relay® Jet Systems

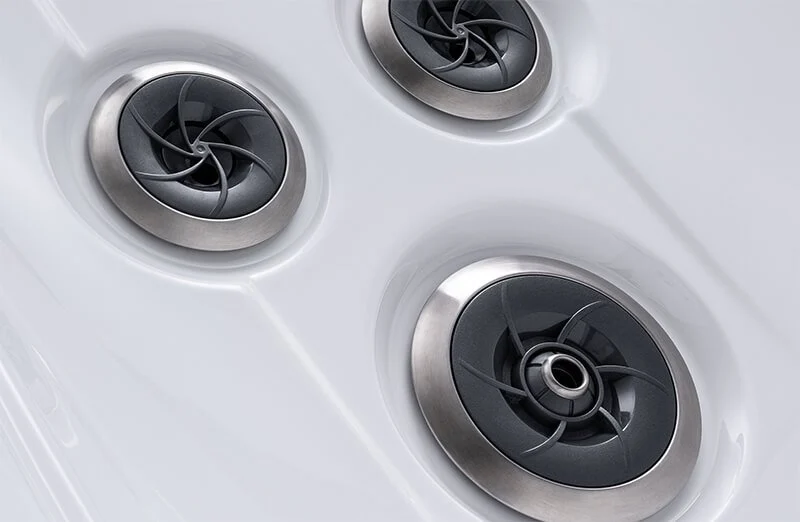

COMPLETE HYDROTHERAPY EXPERIENCE

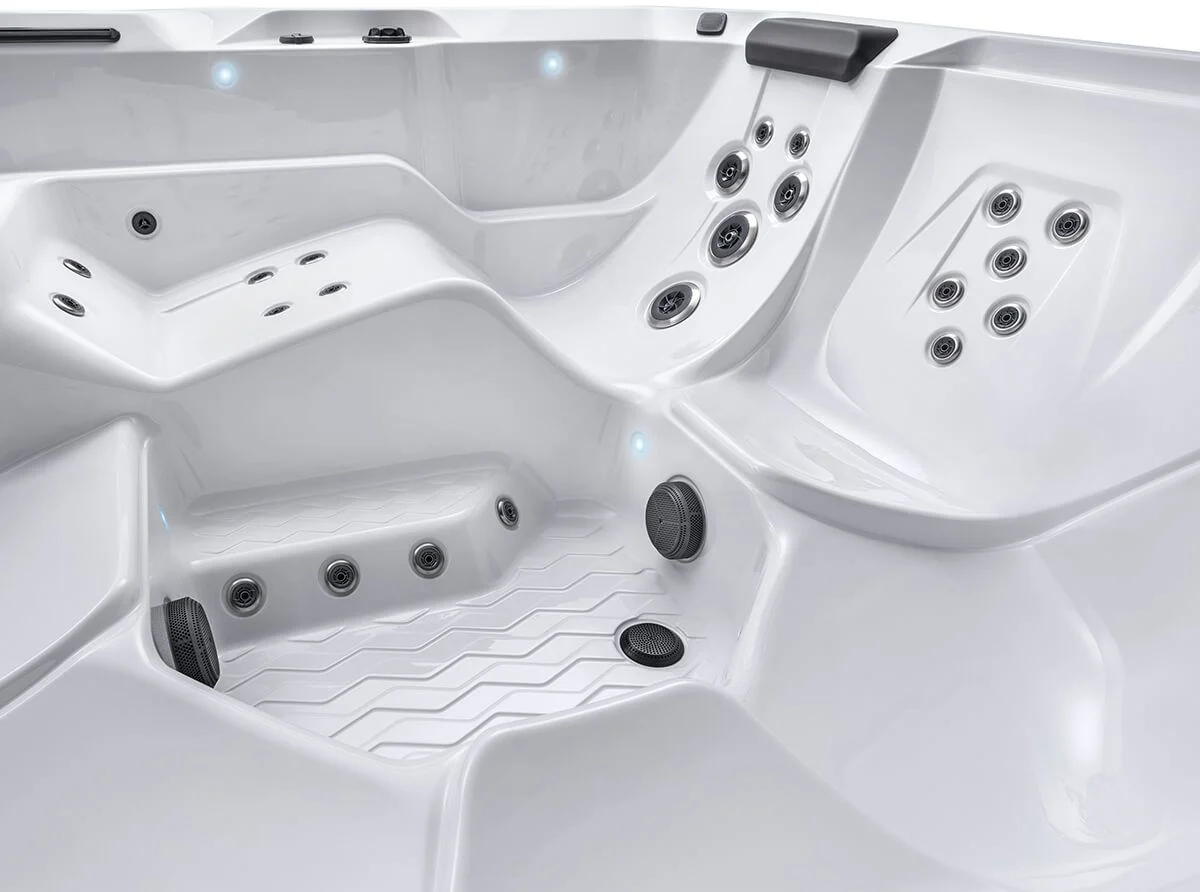

Every aspect of your spa is precision engineered to deliver the ultimate massage experience. Ergonomically designed shells are shaped to fit the body’s contours and position you to make the most of our legendary Hot Spring hydromassage systems.



You’ll emerge energized and inspired – ready to be your best.

Massage

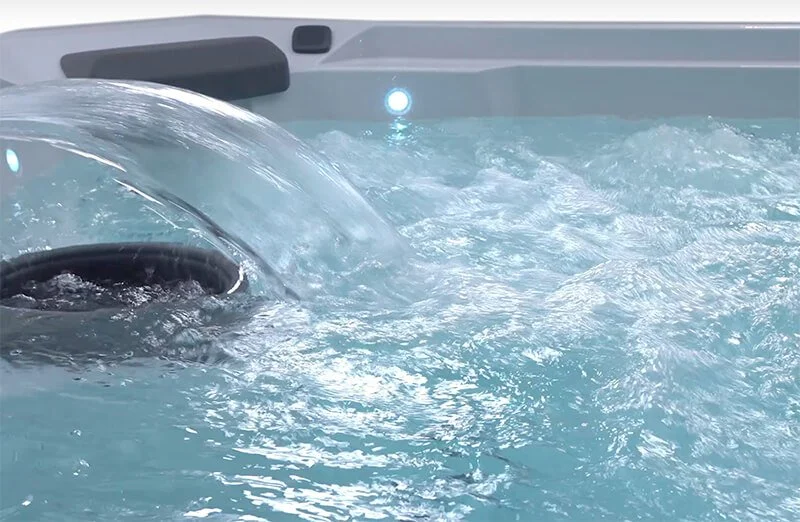

EASY WATER CARE



Hot Spot® Collection spas come ready for the FROG® @ease® in-line sanitizing system.* Pre-filled cartridges with SmartChlor® technology and minerals self-regulate to keep water crystal clear with less effort. @ease creates softer feeling water that’s virtually free of chemical odors since the system works with up to 75% less chlorine.



*Available in the U.S. only; bromine is available in Canada.

Water

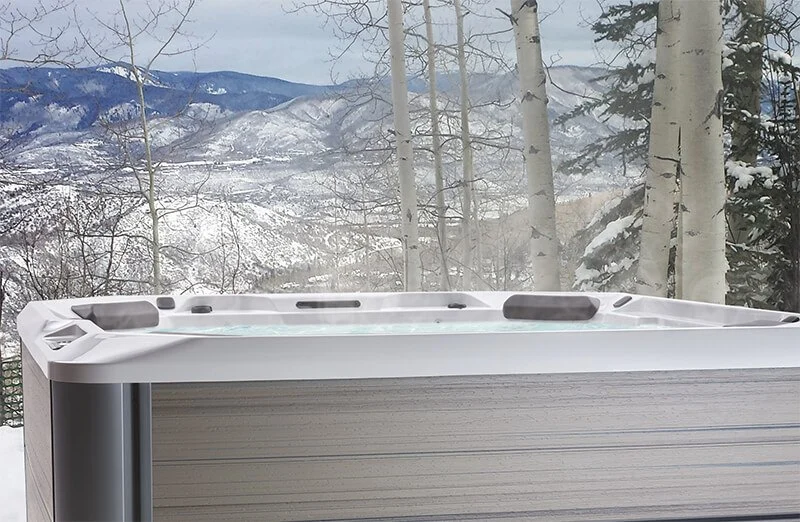

MONEY SAVING-EFFICIENCY



Use your spa every day with features that work together as part of the Energy Smart® system to keep energy costs down. FiberCor® insulation completely fills the spa cabinet with insulation that’s four times more dense than standard half-pound foam. Custom-designed, insulating spa covers provide a tight seal to lock in heat. And our patented No-Fault® heater maximizes heat transfer to the water. Your spa will be there for you, hot and ready with money-saving efficiency.

Energy

THE ABSOLUTE BEST HOT TUB OWNERSHIP EXPERIENCE®



Hot Spring spas are consistently recognized for outstanding quality and value. Dedication and experience add up to unsurpassed quality and reliability for you and your family. Make your spa part of your daily wellness routine, you can count on it to be hot and ready when you are, for years to come.



Quality

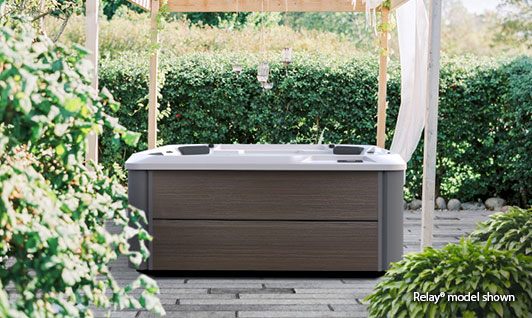

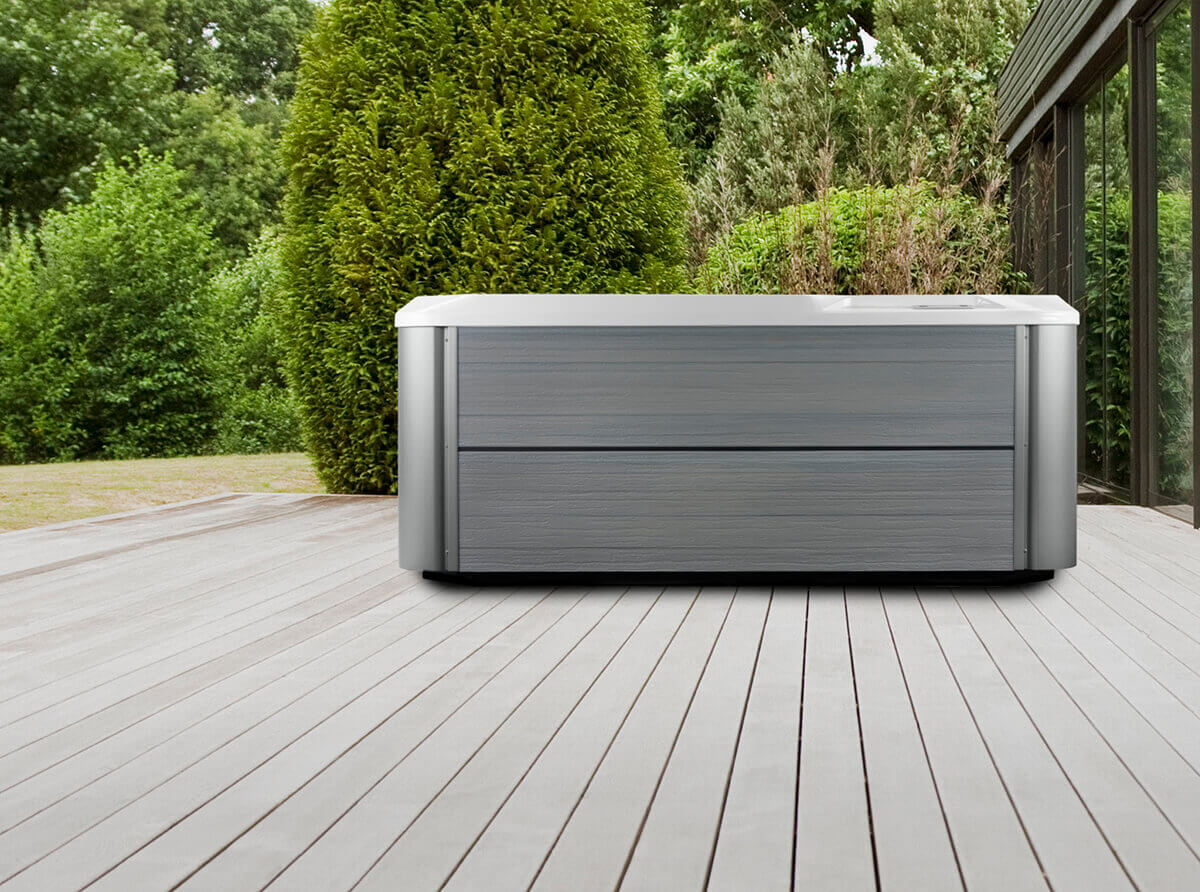

BEAUTIFY YOUR SPACE



Designed to delight the senses, each spa features eye-catching finishes, dramatic LED lighting, sleek metallic corners, and distinctive design details. Subtly embossed cabinets evoke the beauty of natural materials with the durability of advanced composites. Choose from a soothing color palate that follows current design trends and complements your indoor and outdoor space.



A large bartop, contoured seating, and integrated pillows complement the overall design for a unique and on-trend look.

Design
Want to Learn More?
Contact Us

Accessories

Relay® Specifications

Seating Capacity

6 Adult

Dimensions

7’ x 7’ x 36”

2.13 m x 2.13 m x 0.92 m

Water Capacity

340 gallons  / 1,290 liters

Weight

830 lbs.  / 375 kg dry;

4,715 lbs. / 2,140 kg filled*

Jets

40

3 XL Directional Hydromassage jets
2 XL Rotary Hydromassage jets
3 Directional Hydromassage jets
2 Rotary Hydromassage jets
30 Directional Precision® jets

Water Care System

FROG® In-Line Cartridge Ready

Seating

Lounge

Water Feature

Included

Jet Pump 1

Wavemaster® 6200; Two-speed,
1.5 HP Continuous Duty,
3.2 HP Breakdown Torque

Jet Pump 2

Wavemaster® 6000; One-speed,
1.5 HP Continuous Duty,
3.2 HP Breakdown Torque

Floor Drain

Included

Control System

IQ 2020® 230 V 50 amp, 60 Hz
(Includes G.F.C.I. protected sub-panel)

Lighting – Interior

10 multi-color LED points of light, dimmable

Lighting – Exterior

4 multi-color LED points of light, dimmable

Heater

No-Fault® 4,000 W 230 V

Energy Efficiency

FiberCor® Insulation; Certified to California
Energy Commission (CEC) and APSP 14
energy efficiency standards for portable spas

Smart Spa Technology

Hot Spring Spas App, powered by the Connected Spa Kit

Effective Filtration Area

65 sq. ft., top loading

Vinyl Cover

3.5″ to 2.5″ tapered

2 lb. density foam core Nutmeg or Stone

Cover Lifter (Optional)

CoverCradle®, CoverCradle II, or UpRite®,  Lift ‘N Glide®

Steps (Optional)

Hot Spot Collection Step (Almond, Havana,
and Storm), Polymer Step (Ash)

Entertainment (Optional)

Wireless Sound System

Voltage

230

* Includes water and 6 adults weighing 175 lbs. each. Export models available in 240v, 50Hz, 2000w heater
